» Cooling Tower: Heat Exchanger Placement Arrangement

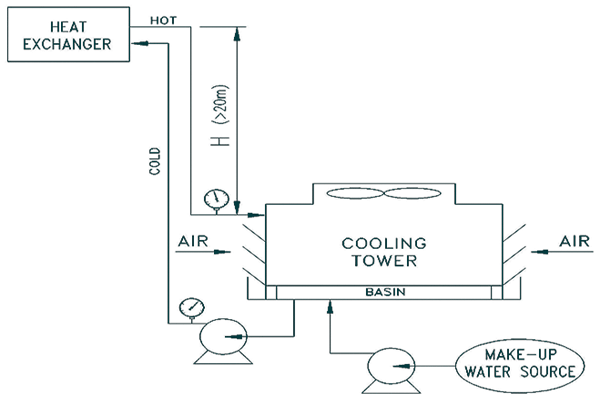

Heat Exchanger placed at higher platform for more than 20 m with respect to Cooling Tower Inlet Pipe

In situation when heat exchanger is at higher platform / elevation / floor relative to the location of cooling tower, it becomes quite feasible to install the Hydro-Turbine for drive of FAN.

Heat Exchanger placed at higher platform from 10 to 20 m with respect to Cooling Tower Inlet Pipe

Fair chance of successful installation of Hydro Turbine for drive of FAN.

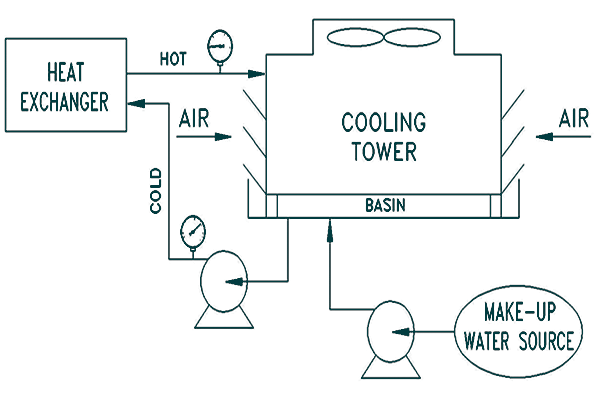

Heat Exchanger placed at same height with respect to Cooling Tower Inlet Pipe

Hydro-Turbine output power is proportional to the product of pressure and flow rate. Please furnish complete details as per questionnaire to check feasibility.

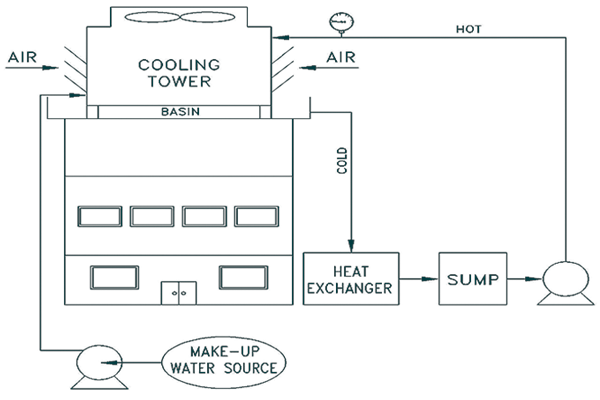

Cooling Tower at Roof Top of Building and Heat Exchanger at Lower Level

Please furnish the complete details as per questionnaire. FAN rotation may not reach desired RPM. Needs the provision of booster pump to increase the FAN RPM.
